| Resolution | 240x240 | Interface | SPI |
| Control IC | ST7789H2 | AA | 26.32x30.96mm |
| Backlight | White LED | Brightness | 450cd/m2 |
| Connector | FPC | View Angle | IPS/TN |
| Operating Temp. | -20°~70°C | Operating Vol. | 2.8V |
| Control IC | ST7567P | Environmental Protection | RoHS HSF |
| Touch Panel | Capacitive/Resistive | Trademark | Jinhua |
| Transport Package | Carton/Pallet | HS Code | 853120000 |
| Origin | China | MOQ | 1000 pcs, negotiable |

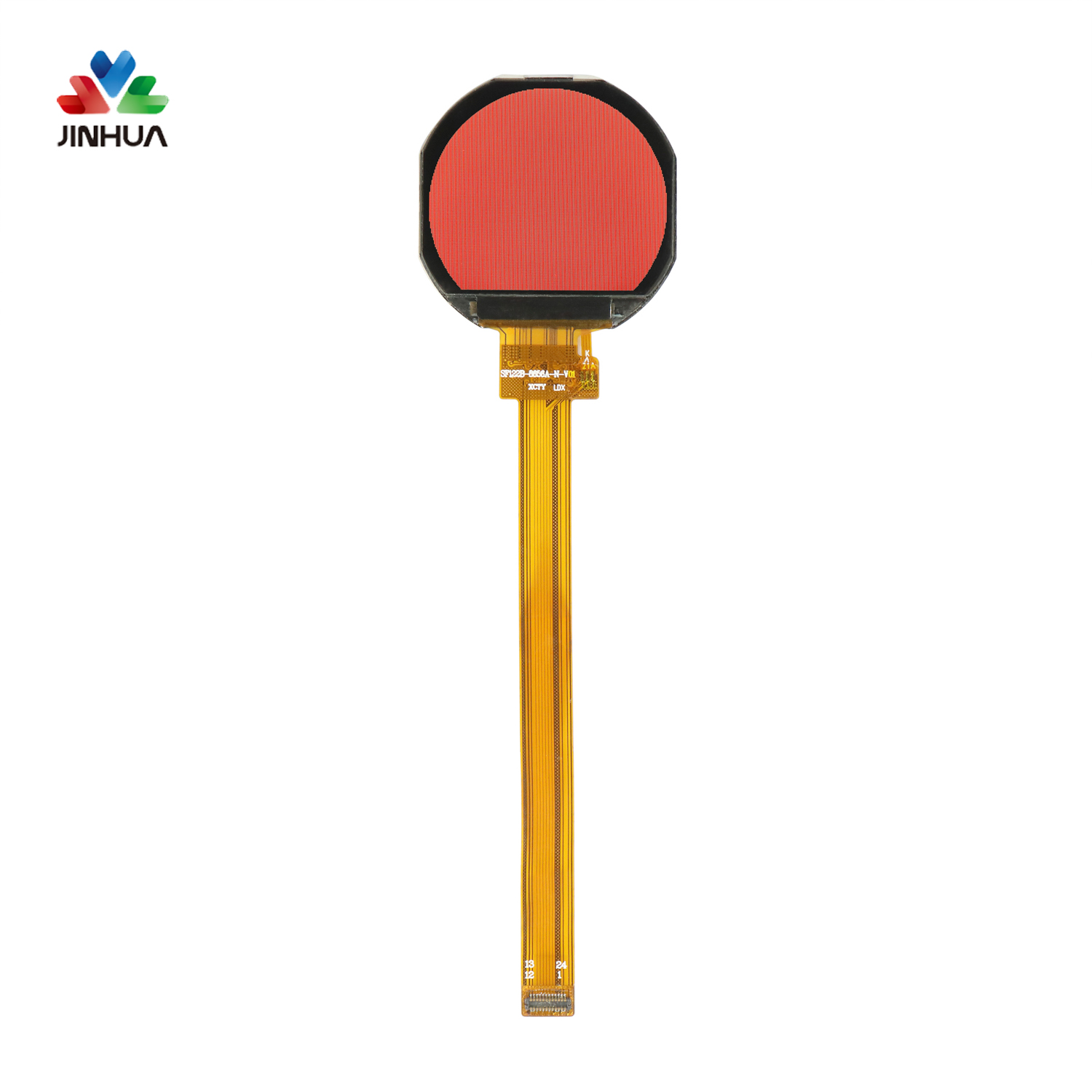

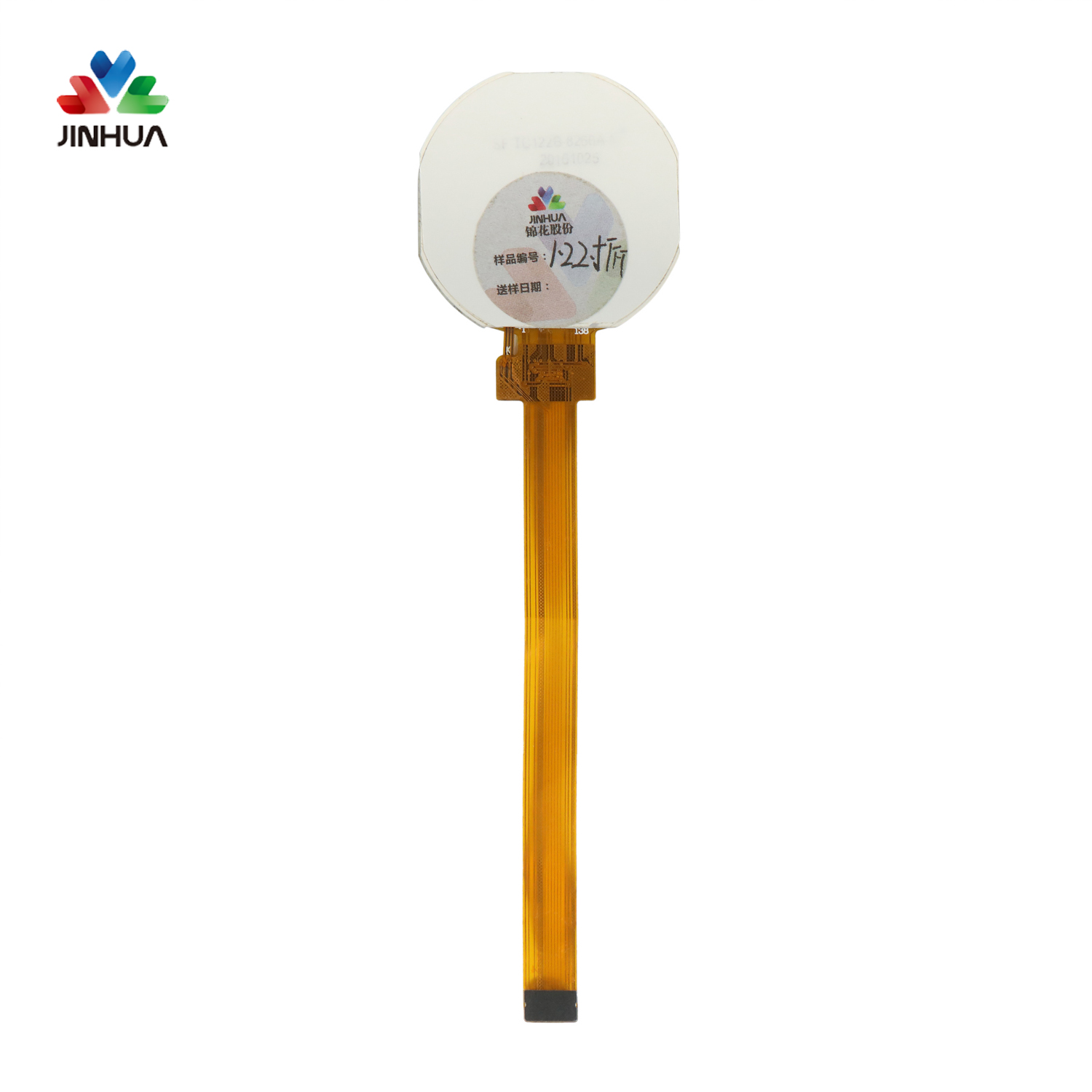

It is a IPS TFT LCD screen product with touch panel available. As mentioned TFT LCD, it means thin-film-transistor liquid-crystal display technology which improves image qualities such as contrast and addressability. A TFT LCD is an simple, direct-driven LCDs with a few segments or active matrix LCD, in contrast to passive matrix LCDs.
There are many adavantages for IPS TFT LCD including: high resolution, quick response, high brightness, etc.
| Display Type | TFT Display |
| Display Size | 1.22 Inch |
| View Angle | IPS/TN |
| Resolution | 240x240 |
| Backlight Color | White LED |
| Brightness | 450cd/m2 |
| Interface | I2C/SPI/MIPI/LVDS/RGB/MCU/UART |
| Control IC | ST7789H2 |
| Connector | FPC |
| Operating Temperature | -20-70°C |
| Operating Voltage | 2.8V |
| Touch Panel | Capacitive/Resistive |
| Requirements On Environmental Protection | ROHS HSF |
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
IPS/TN TFT LCD normally has a large wide range of opearting temperature from -40° to the lowest and 80° to the higest according to its design and process. Round TFT LCD display is widely used in all kinds of application such as smart home, smart medical, face recognition, smart phone, conversation terminal, instrument&meter, hand-held terminal, smart hardware, car network terminal, etc.
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.
Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
Basic Info. Resolution 240x240 Interface SPI Control IC ST7789H2 AA 26.32x30.96mm Backlight White LED Brightness 450cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Control IC ST7567P Environmental Protection RoHS HSF Touch Panel Capacitive/Resistive Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Origin China MOQ 1000 pcs, negotiable
Basic Info. Resolution 240x240 Interface SPI Control IC ST7789V AA 23.4x23.4mm Backlight White LED Brightness 450cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 128x128 Interface SPI Control IC ST7735S AA 26.5x25.5mm Backlight White LED Brightness 350cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -10°~60°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 128x160 Interface SPI Control IC ST7735S AA 28.03x25.04mm Backlight White LED Brightness 450cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 480x480 Interface SPI Control IC ST7701S AA 53.28x53.28mm Backlight White LED Brightness 500cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 320x240 Interface SPI Control IC ILI9324C AA 46.75x35.06mm Backlight White LED Brightness 450cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 240x320 Interface SPI Control IC ST7789V2 AA 57.6x43.2mm Backlight White LED Brightness 450cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 3.3V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 240x320 Interface SPI Control IC ST7789V2 AA 64.8x48.6mm Backlight White LED Brightness 450cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 480x272 Interface SPI Control IC ST7282 AA 95.04x53.86mm Backlight White LED Brightness 450cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 800x480 Interface SPI Control IC ST7262A AA 64.8x108mm Backlight White LED Brightness 450cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 720x1280 Interface RGB Control IC ST7703 AA 68.04x120.96mm Backlight White LED Brightness 350cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~60°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 480x1280 Interface LVDS Control IC ST7796S AA 60.22x160.59mm Backlight White LED Brightness 350cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 1024x600 Interface SPI Control IC ST7796S AA 85.92x154.21mm Backlight White LED Brightness 350cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 1024x600 Interface RGB Control IC ST7796S AA 85.92x154.21mm Backlight White LED Brightness 350cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 800x600 Interface SPI Control IC ST7796S AA 121.5x162mm Backlight White LED Brightness 450cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 1024x600 Interface RGB Control IC HX8282 AA 125.28x222.72mm Backlight White LED Brightness 450cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -10°~60°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
Basic Info. Resolution 800x600 Interface RGB Control IC HX8282 AA 158.4x211.2mm Backlight White LED Brightness 450cd/m2 Connector FPC View Angle IPS/TN Operating Temp. -20°~70°C Operating Vol. 2.8V Touch Panel Capacitive/Resistive Environmental Protection RoHS HSF Origin China Trademark Jinhua Transport Package Carton/Pallet HS Code 853120000 Productivity 600000 pcs/month MOQ 1000 pcs, negotiable
