|Common Cathode 0.56" All Color 3 Digit Seven Segment Display LED China Supplier

Common Cathode 0.56" All Color 3 Digit Seven Segment Display LED China Supplier

Basic Info.

Digit Number	Three	Emitting Color	All Color
Circuit Common	Common Cathode/Anode	Chips Material	Algainp
Power Comsumption	50MW	Display Size	0.28" ~ 4"
Forward Voltage	If=20mA 2.5V Max	Reverse Current	Vr=5V 50μa
Peak Forward Current	60 Ma	Luminous Intensity	If=20mA 42mcd Max
Operating Temperature	-20° to 80°C	Storage Temperature	-30° to 85°C
Origin	China	Transport Package	Carton/Pallet
Production Capacity	1.5 Billion Dots/Month	HS Code	8531200000
MOQ	1000 pcs, negotiable

Inquire Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Detail

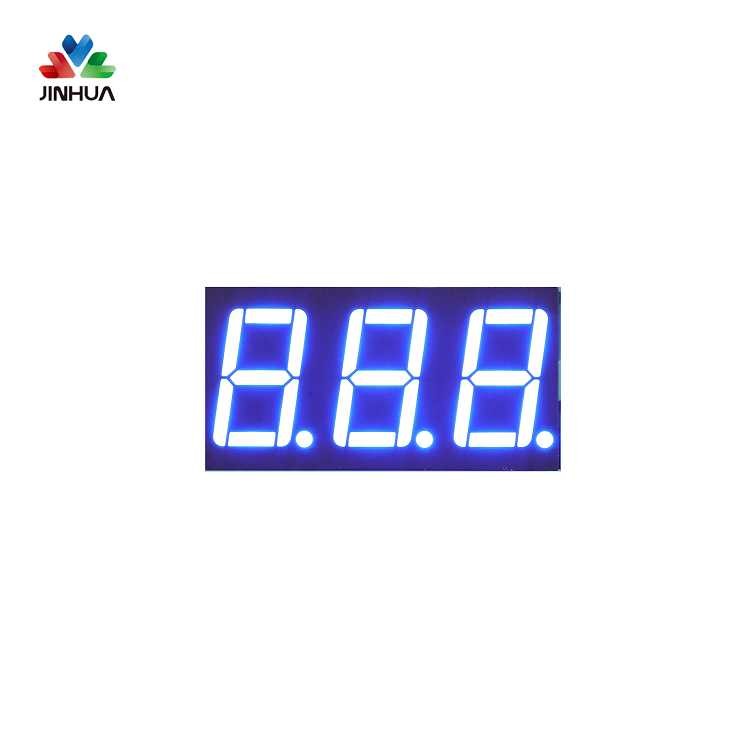

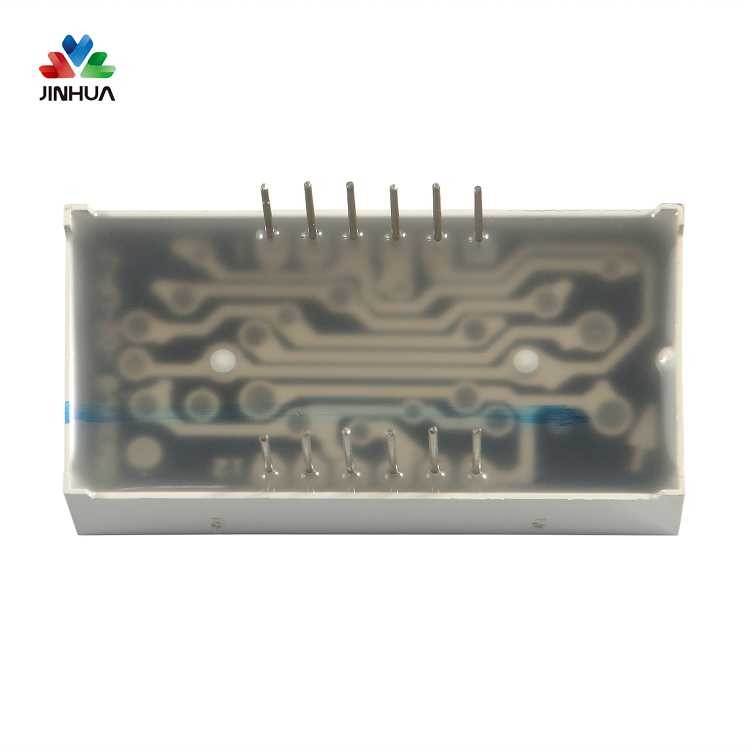

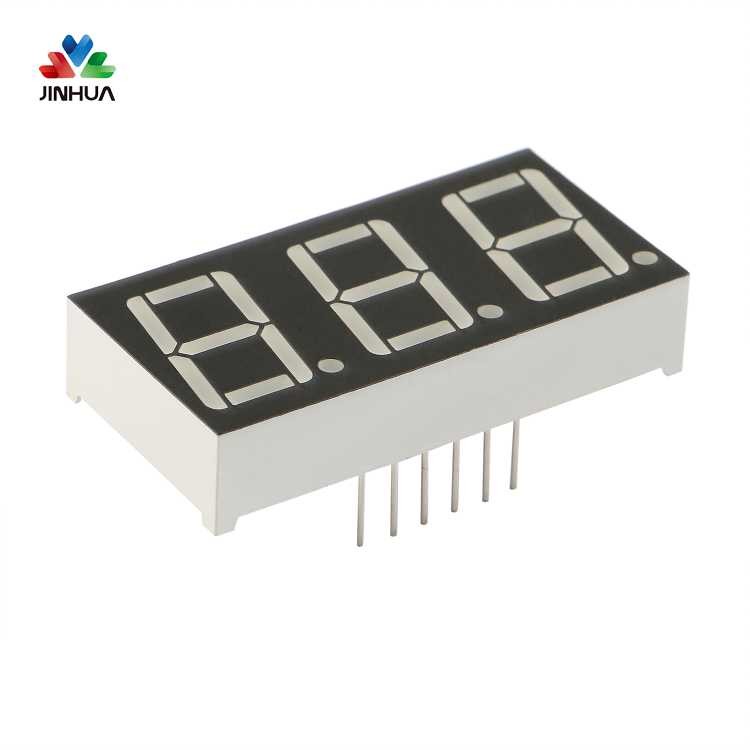

Common Cathode 0.56" All Color 3 Digit Seven Segment Display LED China Supplier

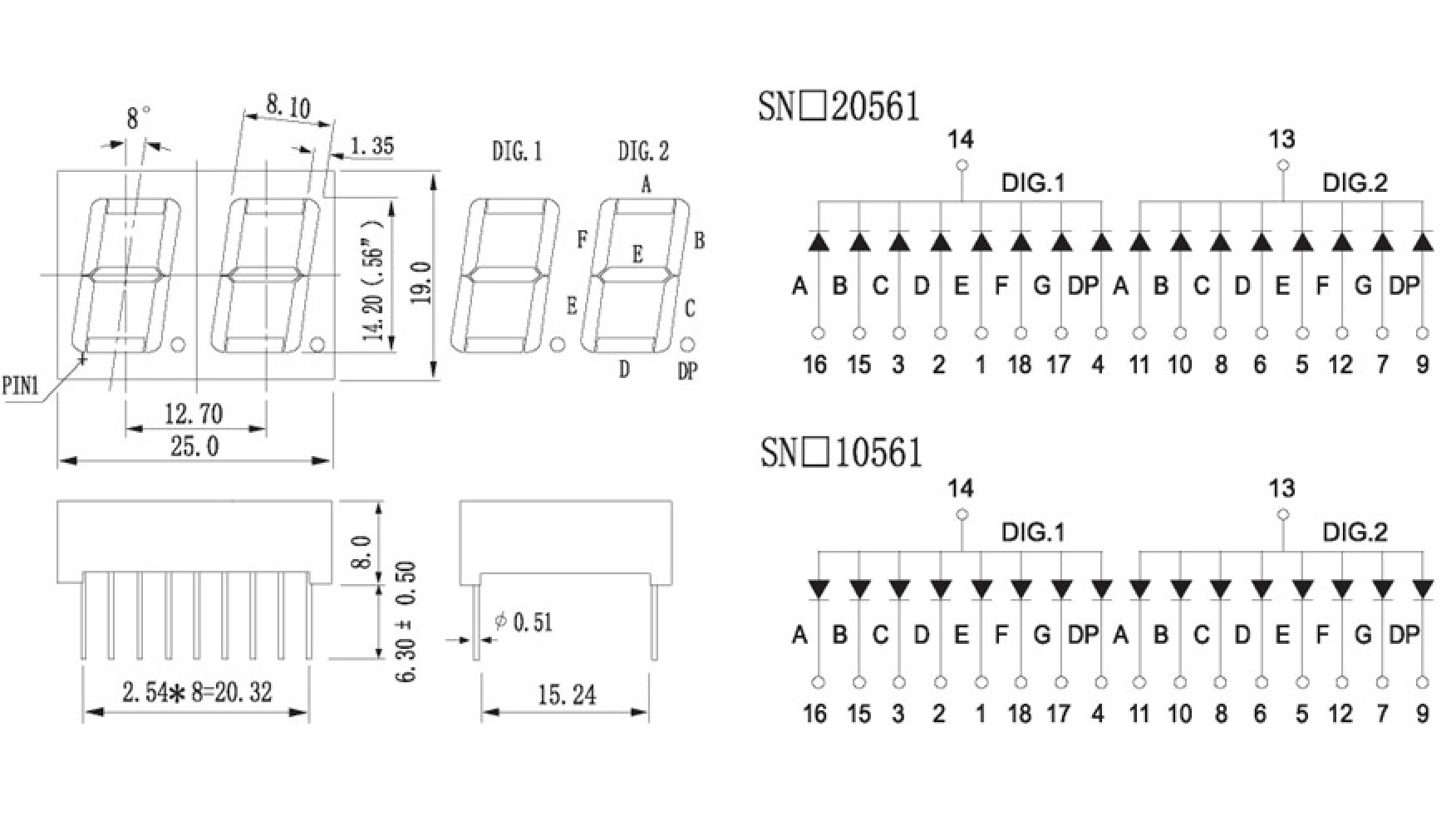

This is a 3 digit seven segment display LED module and its package size is 37.6*19*8mm with all colors of display.

Small Size Seven Segment LED

Digit height	0.56 inch (0.28 inch ~ 4 inch available)
Dimensions	37.6 x 19 x 8mm
Digit quantity	3 Digits
Available Emitting Color	Red/Yellow Green/Yellow/Amber/Blue/White/Pure Green
Surface Color	Black/Gray (white epoxy)
Epoxy Colors	Red, Milky, Blue, Green and more
Polarity	Common Anode/Common Cathode
Connector	Pin
Operating Temperature	-20-80°C
Requirements On Environmental Protection	ROHS HSF

Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.

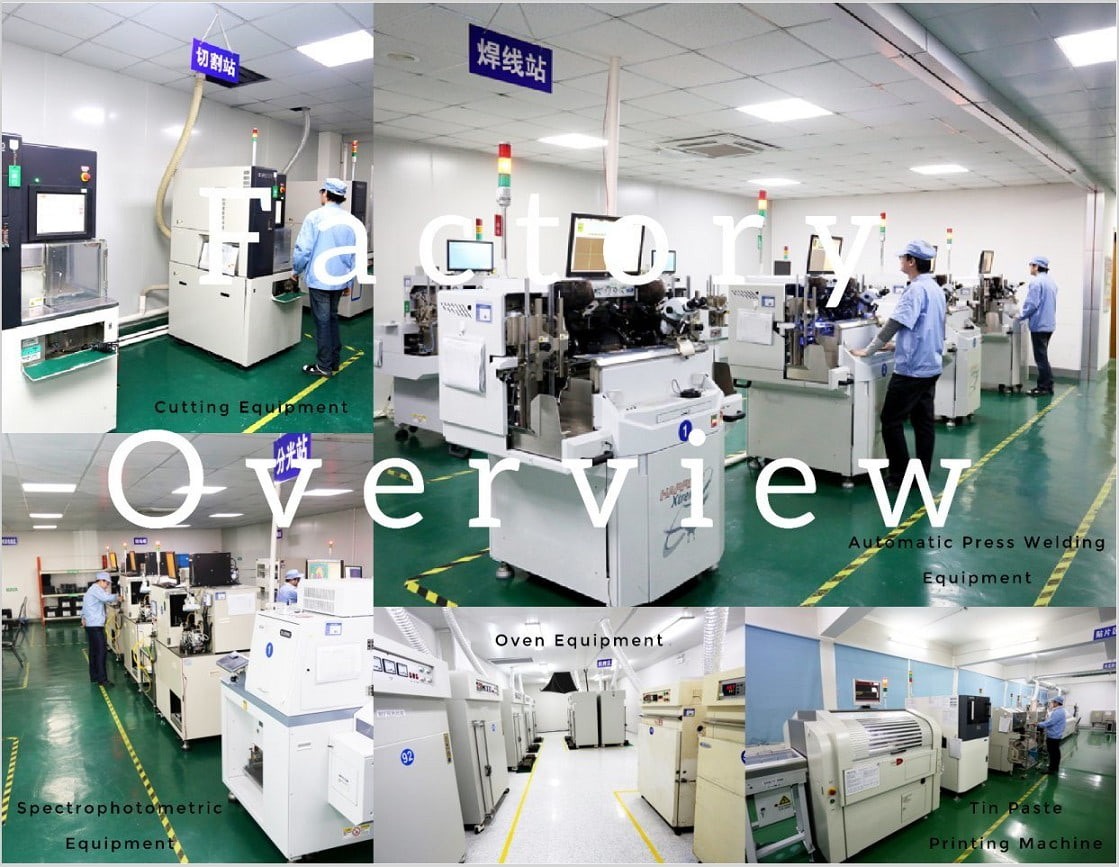

5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.

Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.

Hot Tags : 0.56" 3 digit 7 seg 0.56 inch segment LED screen dot matrix led smd led 3014 smd led 0603 led back light panel
