LED Display

|Common Anode 7 Segment Display 2.3 Inch LED Hot Sale

Common Anode 7 Segment Display 2.3 Inch LED Hot Sale

Basic Info.

Digit Number	Single	Emitting Color	All Color
Circuit Common	Common Cathode/Anode	Chips Material	Algainp
Power Comsumption	50MW	Display Size	0.28" ~ 4"
Forward Voltage	If=20mA 2.5V Max	Reverse Current	Vr=5V 50μa
Peak Forward Current	60 Ma	Luminous Intensity	If=20mA 42mcd Max
Operating Temperature	-20° to 80°C	Storage Temperature	-30° to 85°C
Origin	China	Transport Package	Carton/Pallet
Production Capacity	1.5 Billion Dots/Month	HS Code	8531200000
MOQ	1000 pcs, negotiable

Inquire Now

Product categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Product Detail

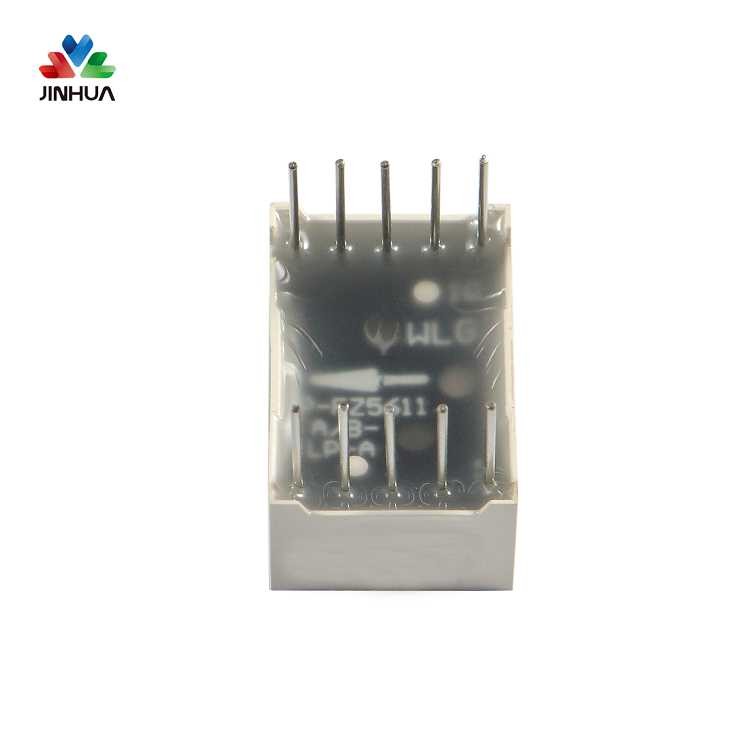

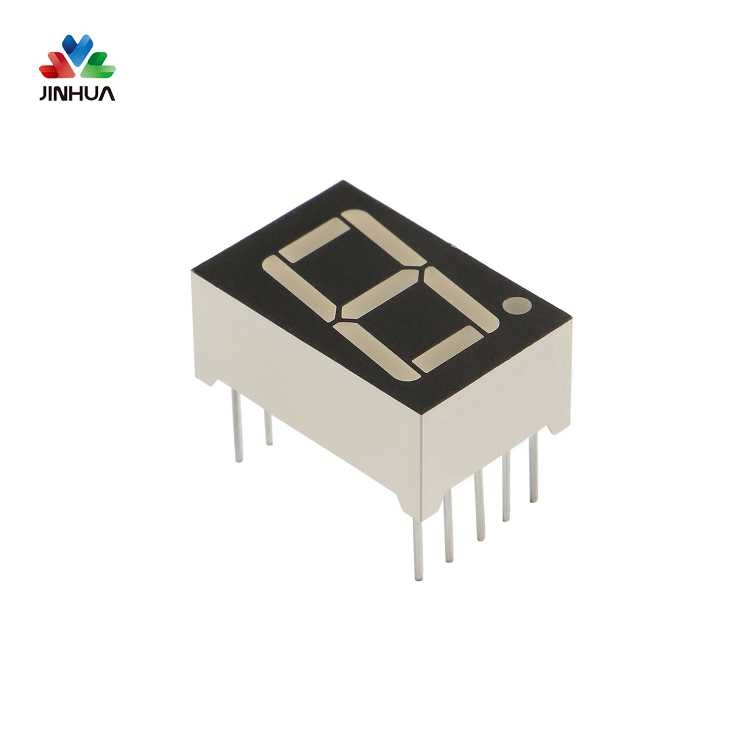

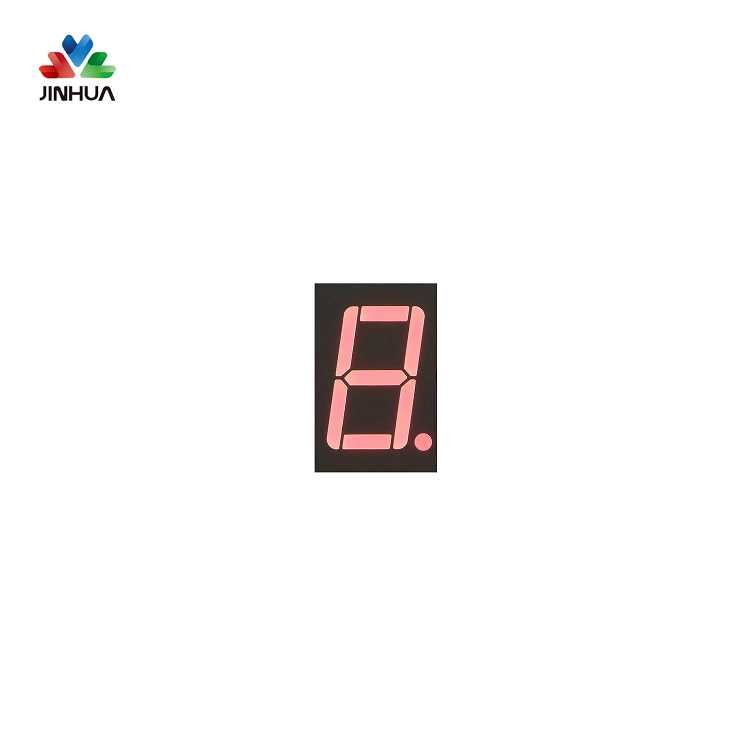

Common Anode 7 Segment Display 2.3 Inch LED Hot Sale

It is a common anode 7 segment display, and it has advantages such as high intensity and reliability, high quality, low power requirement and low cost, IC compatible and easy assembly, etc.

Here in Jinhua Electronics, all kinds of LED segment screen module meet RoHS requirement.

Small Size Seven Segment LED

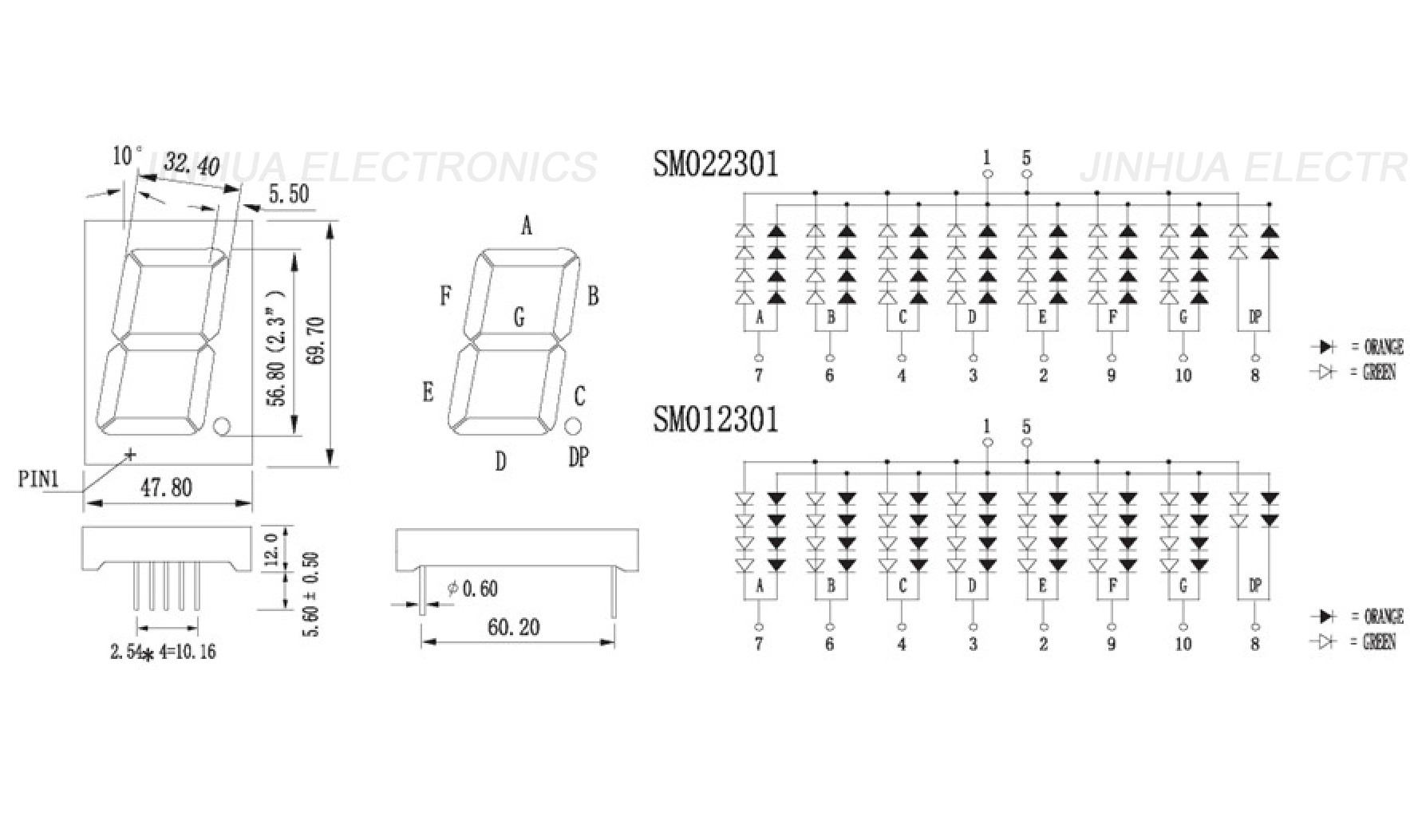

Digit height	2.3 inch (0.28 inch ~ 4 inch available)
Dimensions	69.7 x 47.8 x 12mm
Digit quantity	1 Digit
Available Emitting Color	Red/Yellow Green/Yellow/Amber/Blue/White/Pure Green
Surface Color	Black/Gray (white epoxy)
Epoxy Colors	Red, Milky, Blue, Green and more
Polarity	Common Anode/Common Cathode
Connector	Pin
Operating Temperature	-20-80°C
Requirements On Environmental Protection	ROHS HSF

Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature

Seven Segment LED Display is extensively used in many applications such as smart electric cooker, smart home control system, refregirator, laundry machine, smart water meter, etc.

1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.

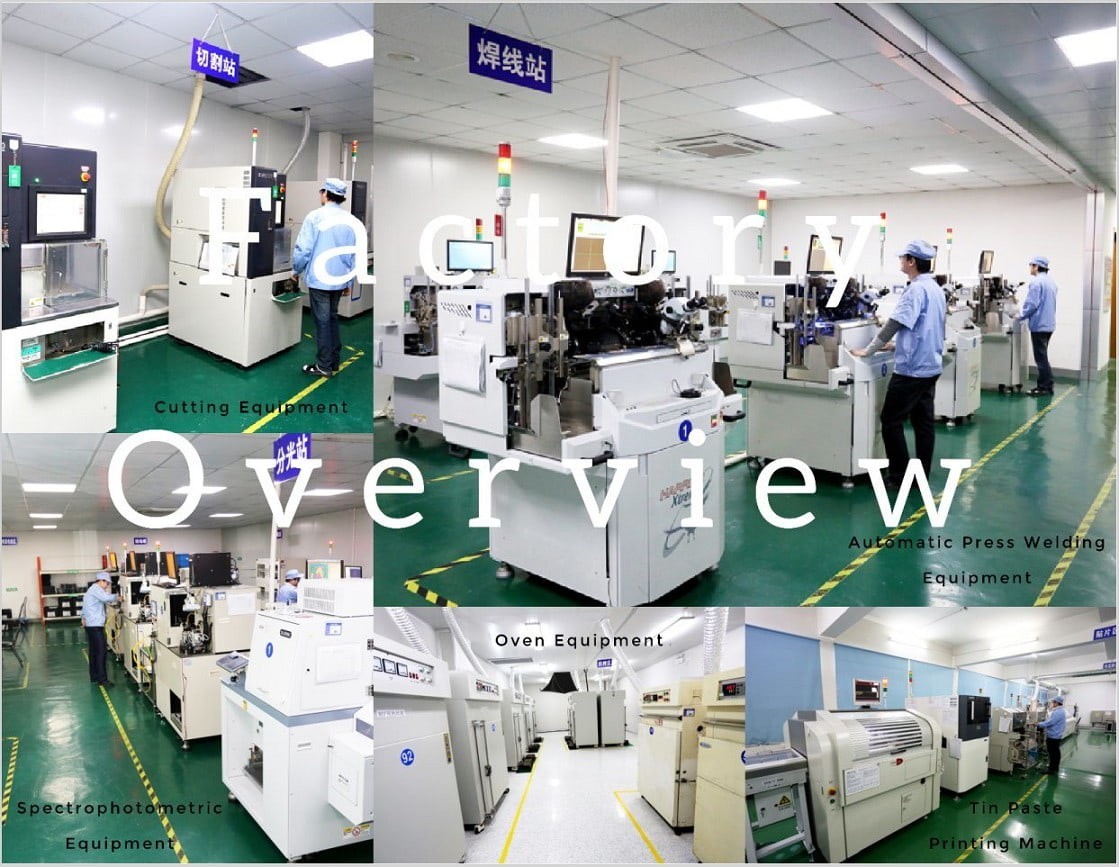

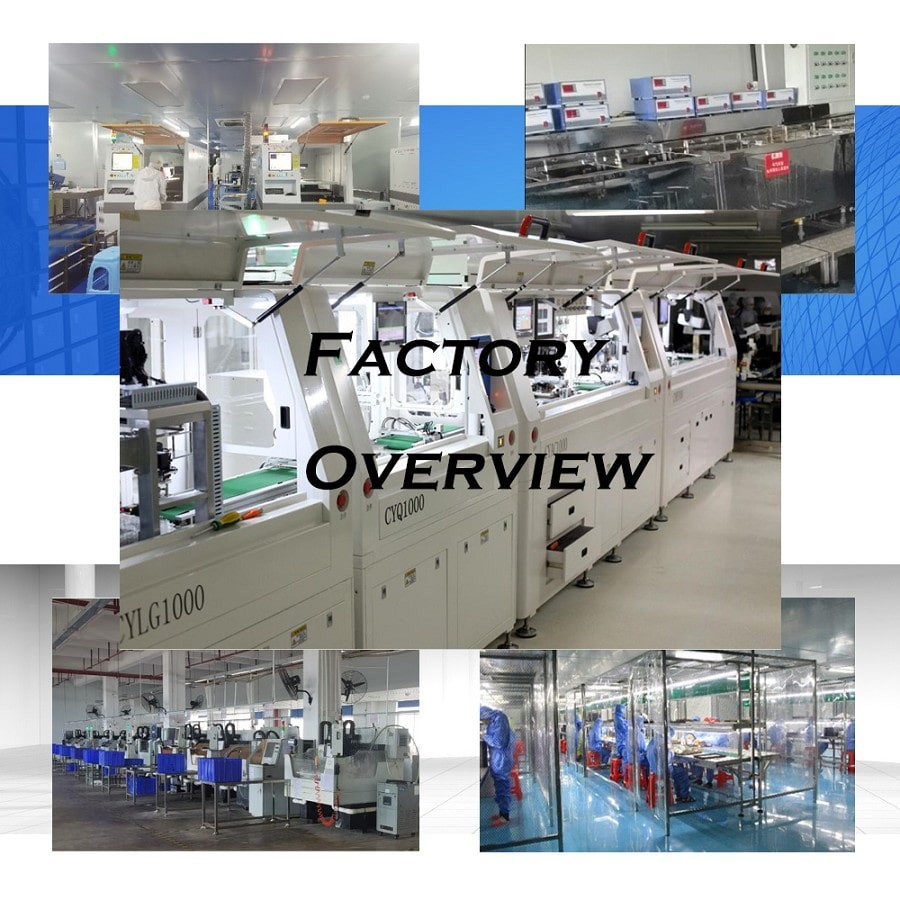

5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.

Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.

Hot Tags : 2.3 inch led common cathode 7 segment display led screen module 7 seg led display dot matrix led smd led 3014
