| Display Mode | Positive | Display Type | Transmissive |
| AA | 60.415X14.645mm | View Angle | 12 O′clock |
| Control IC | ST7567 | Vop | 3V |
| Duty | 1/33 | Bias | 1/6 |
| Backlight | -- | Connector | FPC |
| Operating Temp. | -30° to 80°C | Environmental Protection | RoHS HSF |
| Transport Package | Carton/Pallet | Trademark | Jinhua |
| Origin | China | HS Code | 8531200000 |
| Production Capacity | 3000000 pcs/month | MOQ | 1000 pcs, negotiable |

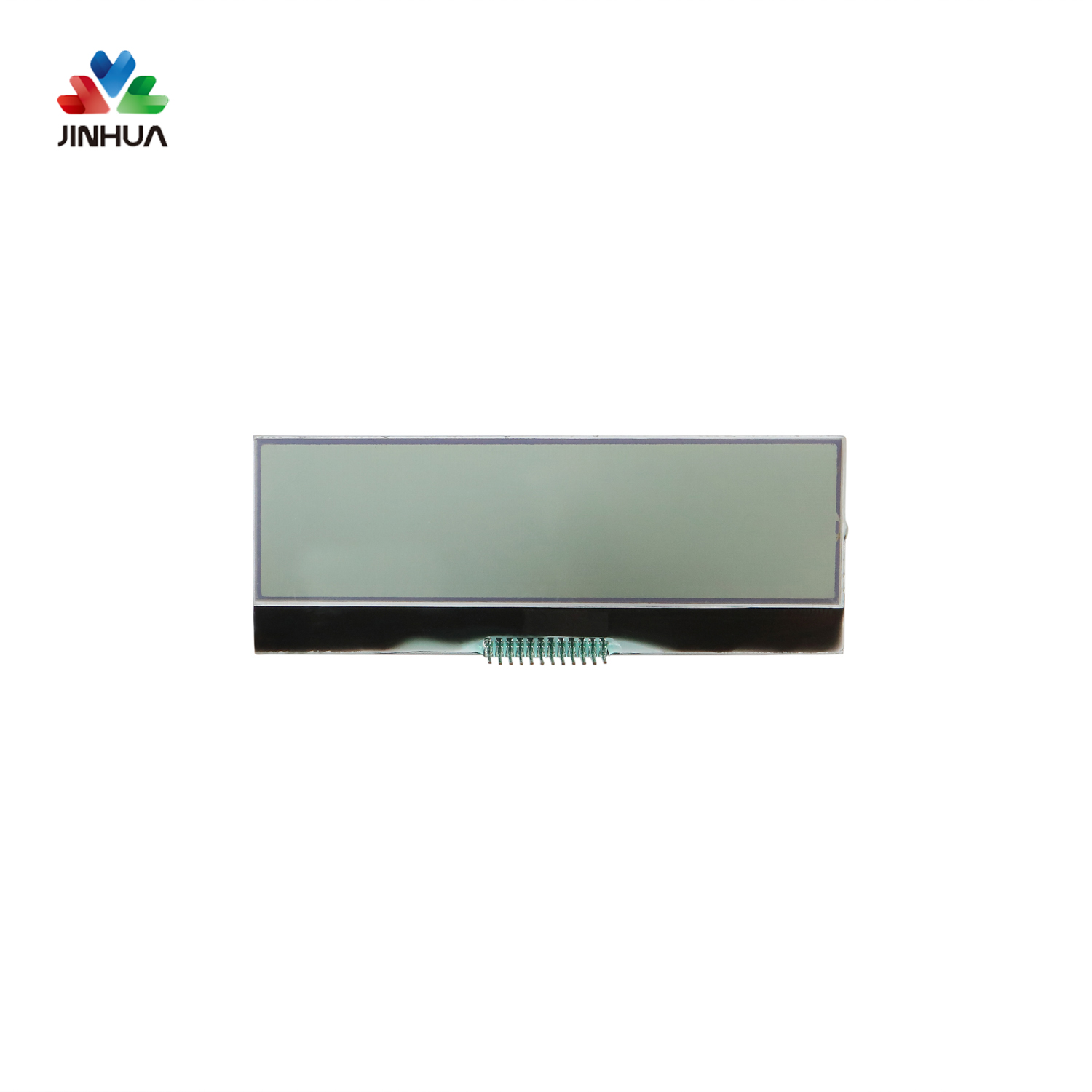

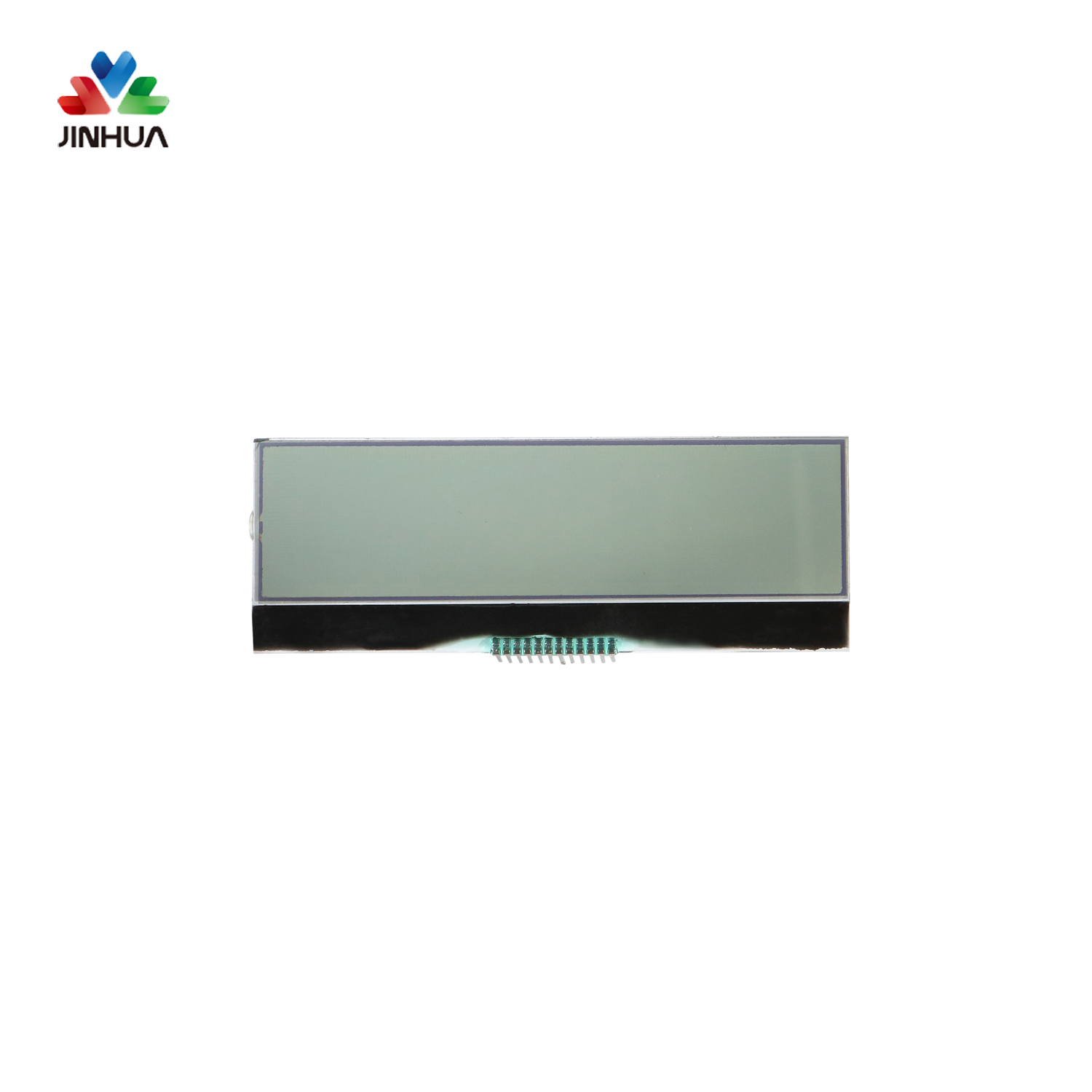

It is a dot matrix LCD display module with 130*32 dot. And it's AA area is 60.415*14.645.
This LCD display adopts COG technolog and is connected by FPC.
| LCD Type | FSTN |
| Display Type | Transmissive |
| Display Mode | Positive |
| View Angle | 12 o'clock |
| Driving Condition | VOP 3V |
| Duty 1/33 | |
| Bias 1/6 | |
| Backlight Color | White LED |
| Control IC | ST7567 |
| Connector | FPC |
| Display Technology | COG |
| Operating Temperature | -30-80°C, custom |
| Requirements On Environmental Protection | ROHS HSF |
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Dot Matrix LCD Display Module regarded as a type of display to apply the demands of showing graphic of text and monochrome numbers at the fixed place. It has many advantages such as low power consumption and custom variable brightness.
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 20 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials:ASM machine,good chips and epoxy resin.
Q1:Are you a factory or trading company?
A1:We are a factory with 20 years experience in this field. And we provide OEM&ODM services.
Q2:Can I get a sample?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: How do you ship the goods and how long does it take arrive?
A3: We usually ship by UPS, DHL, EMS, FEDEX or TNT. It usually takes 3-7 days.
(The freight for sample delivery is at receiver's side; For saving the cost, we recommend the way of prepaid instead of collect.)
Q4:Where is your location?
A4: Our Headquarter located in Nanjing city, Jiangsu Province, a beautiful city with more than 3000 years of history.
Q5.What is the delivery time?
A5.Normally it takes 20-45days after receiving your payment,but it could be negotiated based on your order quantity and our production schedule.
